[Spring Boot] Spring Security + Kotlin + JWT를 이용한 로그인

들어가기 전

이번 포스팅에서는 스프링 시큐리티 + JWT + 코틀린을 사용하여 일반 로그인 구현하는 방법에 대해서 알아보겠습니다.

만약 스프링 시큐리티 + Oauth2.0 + JWT + 자바를 이용한 소셜 로그인 구현하는 방법에 대해서 궁금하신 분은 아래 포스팅을 참고하시는 것을 추천드립니다.





https://hoestory.tistory.com/32

[OAuth] Spring Boot + React + OAuth2.0 이용한 네이버, 카카오 로그인





설정



build.gradle.kts



//security
implementation("org.springframework.boot:spring-boot-starter-security")

//jwt
implementation("io.jsonwebtoken:jjwt-api:0.11.2")
runtimeOnly("io.jsonwebtoken:jjwt-impl:0.11.2")
runtimeOnly("io.jsonwebtoken:jjwt-jackson:0.11.2")





application.yml



jwt:
  secret-key : ${SECRET_KEY}
  access-token-expire-time : 300
  refresh-token-expire-time : 7200



secret-key 같은 경우는 base64로 encode 한 값입니다. base64 Encode 하실 분은 아래 사이트에서 진행하시면 됩니다.

access-token의 만료시간은 5분으로 설정하였습니다.



https://www.base64encode.org/ko/

Base64 인코딩 및 디코딩 - 온라인



지금까지 일반 로그인을 구현하기 위한 설정에 대해서 알아보았습니다. 이제 로그인을 구현하는 코드에 대해서 알아보겠습니다.







RefreshToken, RefreshTokenRepository

@Entity
class RefreshToken(
    @Enumerated(EnumType.STRING)
    val role: Role,
    @Column(nullable = false)
    val token: String,
    @Column(nullable = false)
    val expireAt: LocalDateTime,
    @OneToOne(fetch = FetchType.LAZY)
    val account: Account,
    @Column(nullable = false)
    val accessToken: String,
    @Column(nullable = false)
    val accessTokenExpireAt: LocalDateTime
) : BaseEntity() {
}

// repository
interface RefreshTokenRepository : JpaRepository<RefreshToken, Long> {

    fun existsByAccountId(accountId: Long): Boolean

    fun findByAccountId(accountId: Long): RefreshToken?
    fun deleteByAccountId(accountId: Long)

    fun findByAccessToken(accessToken: String): RefreshToken?
}



SecurityConfig



@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(securedEnabled = true)
class SecurityConfig(
    private val tokenProvider: TokenProvider,
    private val jwtAccessDeniedHandler: JwtAccessDeniedHandler,
    private val refreshTokenRepository: RefreshTokenRepository,
) : WebSecurityConfigurerAdapter() {

 	override fun configure(http: HttpSecurity) {
            http.httpBasic().disable()
            .cors().configurationSource(corsConfigurationSource())
            .and()
            .csrf().disable()
            .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
            .and()
            .addFilterBefore(
                LoginFilter(tokenProvider, refreshTokenRepository),
                UsernamePasswordAuthenticationFilter::class.java
            )
            .exceptionHandling()
            .accessDeniedHandler(jwtAccessDeniedHandler)
            .and()
            .authorizeRequests()
            .antMatchers("/**")
            .permitAll()
            .anyRequest().authenticated()

    }
 }

• cors().configurationSource(corsConfigurationSource()) : Cors에 대한 설정
• . addFilterBefore(LoginFilter(tokenProvider, refreshTokenRepository),         UsernamePasswordAuthenticationFilter::class.java) : 로그인을 할 때 UsernamePasswordAuthenticationFilter 전에 실행되어야 하는 필터를 등록하는 설정
• accessDeniedHandler(jwtAccessDeniedHandler) : 인가 안된 사용자가 접근했을 때에 대한 처리 설정
•  .authorizeRequests().antMatchers("/**") : 접근 경로 설정
• @EnableGlobalMethodSecurity(securedEnabled = true) : @Secured를 사용하여 인가 절차를 수행할 수 있게 해주는 설정



LoginFilter

• 디스패처 서블릿에 도달하기 전에 토큰의 유효성 검증 역할을 하는 필터

class LoginFilter(
    private val tokenProvider: TokenProvider,
    private val refreshTokenRepository: RefreshTokenRepository,
) : OncePerRequestFilter() {
    override fun doFilterInternal(
        request: HttpServletRequest,
        response: HttpServletResponse,
        filterChain: FilterChain
    ) {
        tokenProvider.resolveToken(request = request as? HttpServletRequest?)?.also {
            val loginToken = it.split(" ")[1]
            val findToken = refreshTokenRepository.findByAccessToken(loginToken)

            if (findToken == null || LocalDateTime.now()
                    .isAfter(findToken.accessTokenExpireAt) || !it.toLowerCase()
                    .startsWith("bearer ") || !tokenProvider.validateToken(loginToken)
            ) {
                response.sendError(401)
                return
            }
            val authentication = tokenProvider.getAuthentication(loginToken)
            SecurityContextHolder.getContext().authentication = authentication
        }
        filterChain.doFilter(request, response)
    }
}

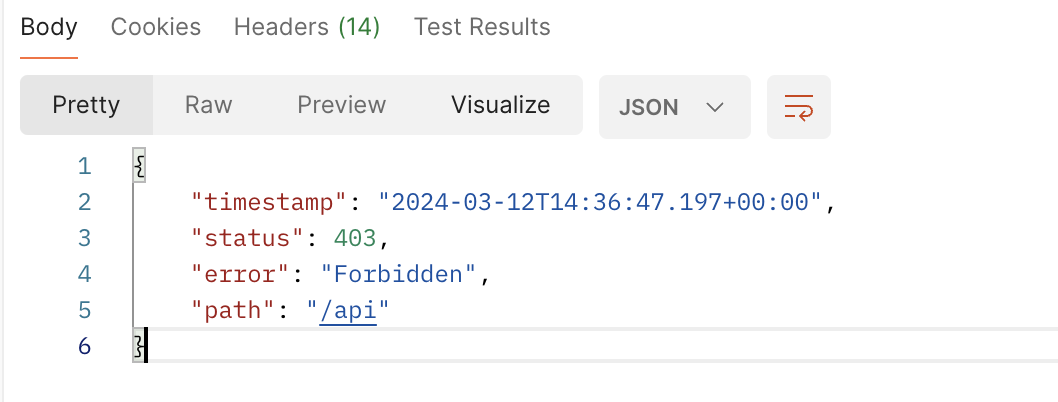

JwtAccessDeniedHandler

• 인가 과정에서 권한이 없는 사용자가 접근했을때에 대한 핸들러

@Component
class JwtAccessDeniedHandler : AccessDeniedHandler{
    override fun handle(request: HttpServletRequest?, response: HttpServletResponse, accessDeniedException: AccessDeniedException?) {
        response.sendError(HttpServletResponse.SC_FORBIDDEN);
    }
}



LoginToken

• 토큰, 토큰 만료시간을 담고 있는 객체

data class LoginToken(
    val id: Long,
    val grantType: String = "Bearer",
    val accessToken: String,
    val refreshToken: String,
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    val accessTokenExpiredAt : LocalDateTime,
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    val refreshTokenExpiredAt : LocalDateTime,
)



TokenProvider

• 토큰(access, refresh) 생성 및 만료시간 체크
• 토큰에 담겨져 있는 사용자 정보 추출
• 토큰 유효성 검증

@Component
class TokenProvider(
    private val accountRepository: AccountRepository,
    @Value("\${jwt.secret-key}")
    private val secretKey: String,
    @Value("\${jwt.access-token-expire-time}")
    private val ACCESS_TOKEN_EXPIRE_TIME: String,
    @Value("\${jwt.refresh-token-expire-time}")
    private val REFRESH_TOKEN_EXPIRE_TIME: String,
    private val refreshTokenRepository: RefreshTokenRepository,
) {

    val key: Key by lazy {
        Keys.hmacShaKeyFor(Decoders.BASE64.decode(secretKey))
    }

    /**
     * accessToken, refreshToken 생성
     */
    fun getToken(id: Long, role: String, now: Date): LoginToken {
        val now: LocalDateTime = LocalDateTime.now()

        val accessTokenTime: LocalDateTime =
            now.plus(ACCESS_TOKEN_EXPIRE_TIME.toLong(), ChronoUnit.SECONDS)
        val refreshTokenTime: LocalDateTime =
            now.plus(REFRESH_TOKEN_EXPIRE_TIME.toLong(), ChronoUnit.SECONDS)
        val accessToken = createToken(
            id = id,
            tokenExpireTime = accessTokenTime.toInstant(ZoneOffset.UTC).toEpochMilli(),
            role = role
        )
        val loginUserRole = Role.valueOf(role)
        var loginToken: LoginToken? = refreshTokenRepository.findByAccountId(id)?.let {
            if (now.isAfter(it.expireAt)) {
                throw CustomException(ExceptionCode.REFRESH_TOKEN_EXPIRE)
            }
            val account = accountRepository.findByIdOrNull(it.id)
                ?: throw CustomException(ExceptionCode.NOT_EXSISTS_INFO)
            LoginToken(
                accessToken = accessToken,
                refreshToken = it.token,
                accessTokenExpiredAt = accessTokenTime,
                refreshTokenExpiredAt = it.expireAt,
                id = account.id
            )
        }
        if (loginToken == null) {
            val refreshToken = createToken(
                id = id,
                tokenExpireTime = refreshTokenTime.toInstant(ZoneOffset.UTC).toEpochMilli(),
                role = role
            )
            val account = accountRepository.findByIdOrNull(id)
                ?: throw CustomException(ExceptionCode.NOT_EXSISTS_INFO)
            val savedRefreshToken = refreshTokenRepository.save(
                RefreshToken(
                    account = account,
                    token = refreshToken,
                    expireAt = refreshTokenTime,
                    role = loginUserRole,
                    accessToken = accessToken,
                    accessTokenExpireAt = accessTokenTime
                )
            )
            loginToken = LoginToken(
                accessToken = accessToken,
                refreshToken = refreshToken,
                accessTokenExpiredAt = accessTokenTime,
                refreshTokenExpiredAt = refreshTokenTime,
                id = savedRefreshToken.id
            )
        }
        return loginToken
    }

    fun getAuthentication(token: String): Authentication {
        val account = accountRepository.findByIdOrNull(getAccount(token)) ?: throw CustomException(
            ExceptionCode.NOT_EXSISTS_INFO
        )
        val loginUserDetail = LoginUserDetail(account.email, account.role.name);
        return UsernamePasswordAuthenticationToken(loginUserDetail, "", loginUserDetail.authorities)
    }

    fun getAccount(token: String): Long {
        return Jwts.parserBuilder().setSigningKey(secretKey).build()
            .parseClaimsJws(token).body.subject.toLong()
    }


    fun validateToken(token: String): Boolean {
        try {
            Jwts.parserBuilder().setSigningKey(key).build().parseClaimsJws(token).body
            return true;
        } catch (e: SecurityException) {
            e.printStackTrace()
        } catch (e: ExpiredJwtException) {
            return false
        } catch (e: UnsupportedJwtException) {
            e.printStackTrace()
        } catch (e: IllegalArgumentException) {
            e.printStackTrace()
        }
        return false
    }

    fun resolveToken(request: HttpServletRequest?): String? {
        return request?.getHeader("Authorization")
    }

    //토큰 생성
    private fun createToken(id: Long, tokenExpireTime: Long, role: String): String {
        return Jwts.builder()
            .setSubject(id.toString())
            .claim("auth", role)
            .setExpiration(Date(tokenExpireTime))
            .signWith(key, SignatureAlgorithm.HS512)
            .compact()
    }
}





토큰 생성

 private fun createToken(id: Long, tokenExpireTime: Long, role: String): String {
        return Jwts.builder()
            .setSubject(id.toString())
            .claim("auth", role)
            .setExpiration(Date(tokenExpireTime))
            .signWith(key, SignatureAlgorithm.HS512)
            .compact()
}





토큰 유효성 검증

fun validateToken(token: String): Boolean {
        try {
            Jwts.parserBuilder().setSigningKey(key).build().parseClaimsJws(token).body
            return true;
        } catch (e: SecurityException) {
            e.printStackTrace()
        } catch (e: ExpiredJwtException) {
            return false
        } catch (e: UnsupportedJwtException) {
            e.printStackTrace()
        } catch (e: IllegalArgumentException) {
            e.printStackTrace()
        }
        return false
}





헤더에 담긴 토큰 추출

fun resolveToken(request: HttpServletRequest?): String? {
    return request?.getHeader("Authorization")
}





토큰에 담긴 사용자 정보 추출

fun getAccount(token: String): Long {
    return Jwts.parserBuilder().setSigningKey(secretKey).build()
        .parseClaimsJws(token).body.subject.toLong()
}



Access, Refresh 토큰 저장 및 응답

fun getToken(id: Long, role: String, now: Date): LoginToken {
        val now: LocalDateTime = LocalDateTime.now()

        val accessTokenTime: LocalDateTime =
            now.plus(ACCESS_TOKEN_EXPIRE_TIME.toLong(), ChronoUnit.SECONDS)
        val refreshTokenTime: LocalDateTime =
            now.plus(REFRESH_TOKEN_EXPIRE_TIME.toLong(), ChronoUnit.SECONDS)
        val accessToken = createToken(
            id = id,
            tokenExpireTime = accessTokenTime.toInstant(ZoneOffset.UTC).toEpochMilli(),
            role = role
        )
        val loginUserRole = Role.valueOf(role)
        var loginToken: LoginToken? = refreshTokenRepository.findByAccountId(id)?.let {
            if (now.isAfter(it.expireAt)) {
                throw CustomException(ExceptionCode.REFRESH_TOKEN_EXPIRE)
            }
            val account = accountRepository.findByIdOrNull(it.id)
                ?: throw CustomException(ExceptionCode.NOT_EXSISTS_INFO)
            LoginToken(
                accessToken = accessToken,
                refreshToken = it.token,
                accessTokenExpiredAt = accessTokenTime,
                refreshTokenExpiredAt = it.expireAt,
                id = account.id
            )
        }
        if (loginToken == null) {
            val refreshToken = createToken(
                id = id,
                tokenExpireTime = refreshTokenTime.toInstant(ZoneOffset.UTC).toEpochMilli(),
                role = role
            )
            val account = accountRepository.findByIdOrNull(id)
                ?: throw CustomException(ExceptionCode.NOT_EXSISTS_INFO)
            val savedRefreshToken = refreshTokenRepository.save(
                RefreshToken(
                    account = account,
                    token = refreshToken,
                    expireAt = refreshTokenTime,
                    role = loginUserRole,
                    accessToken = accessToken,
                    accessTokenExpireAt = accessTokenTime
                )
            )
            loginToken = LoginToken(
                accessToken = accessToken,
                refreshToken = refreshToken,
                accessTokenExpiredAt = accessTokenTime,
                refreshTokenExpiredAt = refreshTokenTime,
                id = savedRefreshToken.id
            )
        }
        return loginToken
    }





@LoginUser

• 로그인한 사용자 정보를 가지고 있는 커스텀 어노테이션

@Target(AnnotationTarget.ANNOTATION_CLASS, AnnotationTarget.VALUE_PARAMETER)
@Retention(AnnotationRetention.RUNTIME)
@MustBeDocumented
annotation class LoginUser





LoginInterception

• @LoginUser 어노테이션에 사용자 정보를 담아주는 인터셉터

@Component
class LoginInterception(
    private val accountRepository: AccountRepository,
) : HandlerMethodArgumentResolver {
    override fun supportsParameter(parameter: MethodParameter): Boolean {
        return parameter.hasParameterAnnotation(LoginUser::class.java)
    }

    override fun resolveArgument(
        parameter: MethodParameter,
        mavContainer: ModelAndViewContainer?,
        webRequest: NativeWebRequest,
        binderFactory: WebDataBinderFactory?
    ): Any? {
        val authentication = SecurityContextHolder.getContext().authentication
        val role = authentication.authorities.first().toString().split("_")
        var authenRole =
            if (role.size == 2) {
                role[1]
            } else {
                "${role[1]}_${role[2]}"
            }
        val account = accountRepository.findByEmailAndRole(
            authentication.name, Role.valueOf(authenRole)
        )
            ?: throw CustomException(ExceptionCode.TOKEN_EXPIRE)
        return LoginUserInfo(account.id, account.role)
    }
}





LoginUserDetail

• 사용자에 대한 권한, 정보를 담는 객체

class LoginUserDetail(
    val email: String,
    val role: String?,
) : UserDetails{

    override fun getAuthorities(): MutableCollection<out GrantedAuthority> {
        if(role == null) {
            return mutableListOf()
        }
        return mutableListOf(SimpleGrantedAuthority("ROLE_${role}"))
    }

    override fun getPassword(): String = ""

    override fun getUsername(): String = email

    override fun isAccountNonExpired(): Boolean = true

    override fun isAccountNonLocked(): Boolean = true

    override fun isCredentialsNonExpired(): Boolean = true

    override fun isEnabled(): Boolean = true
}





이제 위 코드 기반으로 로그인 및 사용자 정보 조회 API를 만들어서 결과를 확인해 보겠습니다.



※참고 : 간단하게 보여주기 위해 Service 계층 없이 예제를 진행하겠습니다.



data class LoginToken(
    val id: Long,
    val grantType: String = "Bearer",
    val accessToken: String,
    val refreshToken: String,
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    val accessTokenExpiredAt : LocalDateTime,
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    val refreshTokenExpiredAt : LocalDateTime,
)


data class AccountInfo(
    val id: Long,
    val name: String,
    @JsonFormat(pattern = "yyyy-MM-dd")
    val birth: LocalDate
)

@ApiModel(value = "로그인 요청")
data class LoginInfo(
    @ApiModelProperty(value = "이메일")
    val email: String,
    @ApiModelProperty(value = "비밀번호")
    val password: String,
    @ApiModelProperty(value = "로그인 타입")
    val loginType: LoginType,
)

data class LoginUserInfo(val id: Long, val role: Role)

@RestController
@RequestMapping("/api")
class AccountController(
    private val accountRepository: AccountRepository,
    private val bCryptPasswordEncoder: BCryptPasswordEncoder,
    private val refreshTokenRepository: RefreshTokenRepository,
    private val tokenProvider: TokenProvider,
) {

    @ApiOperation(value = "로그인")
    @PostMapping("/login")
    fun login(@RequestBody loginInfo: LoginInfo): LoginToken  {
        val account = accountRepository.findByEmail(loginInfo.email)
            ?: throw CustomException(ExceptionCode.NOT_MATCH_ID_OR_PASSWORD)
        require(bCryptPasswordEncoder.matches(loginInfo.password, account.password)) {
            throw CustomException(ExceptionCode.NOT_MATCH_ID_OR_PASSWORD)
        }

        if (refreshTokenRepository.existsByAccountId(account.id)) {
            refreshTokenRepository.deleteByAccountId(account.id)
        }
        return tokenProvider.getToken(account.id, account.role.name, Date())
    }

    @ApiOperation(value = "사용자 정보")
    @GetMapping
    @Secured("ROLE_USER")
    fun getInfo(@LoginUser loginUserInfo: LoginUserInfo) : AccountInfo {
        val account = accountRepository.findByIdOrNull(loginUserInfo.id) ?: throw CustomException(
            ExceptionCode.NOT_EXSISTS_INFO
        )
        return AccountInfo(id = account.id, name =  account.name, birth = account.birth)
    }
}

•     @Secured : 해당 어노테이션을 통해 API에 접근할 수 있는 권한을 설정할 수 있습니다.



사용자 권한이 ADMIN일 경우







사용자 권한이 USER일 경우
